Product Description

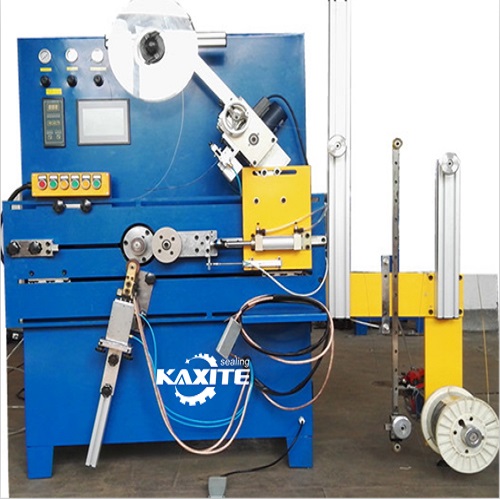

Product Name: Medium - sized CNC winding machine
Model: KXT-2
Function: This machine is used for 1/2 "-12" size spiral wound gasket (including the basic type and inner ring) processing. Rod and pressure roller are used pneumatic, pressure adjustment range, easy to operate. Power using servo motor, processing parameters from the touch screen and PLC to complete the parameters of the digital input. The dimensions are controlled by tie rod potentiometers and are dimensioned without the need for manual measurement compared to conventional winder and reduce the measurement error. Welding to achieve automation. Equipment comes with steel forming devices and scissors, to achieve flat steel with no manual cutting and feeding steel strip, and with a steel head half-cut function (for the inner ring to remove the gasket to provide convenient) to meet Customers of the products of high standards.
The basic parameters: Voltage: ~ 220V
Power: 1.5KW + 1.5KW
Net weight: 550KG
Gross weight: 650KG
Applicable scope:1/2 "-12"
Length × width × height: 175 × 95 × 150 (CM)
