Description

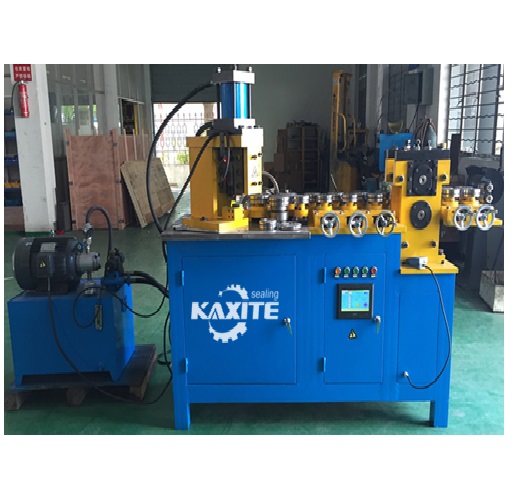

Product Name: Automatic Ring bending machine
Model: KXTSK-W2
Function: This machine is used for Φ150-Φ3000, cover 6-40MM metal ring inside and outside ring processing. Power use servo motor, processing parameters from the touch screen and PLC to complete, the parameters of digital input, with automatic cutting system, to achieve automatic operation, high pass rate, processing speed.
The basic parameters: Voltage: ~ 380V, three-phase four-wire, 50HZ
Power: 5.5KW + 3KW
Net weight: 1300KG
Gross weight: 1500KG
Scope: Φ150-Φ3000, the cover of 6-40MM
Length × width × height: 240 × 95 × 122 (CM)
