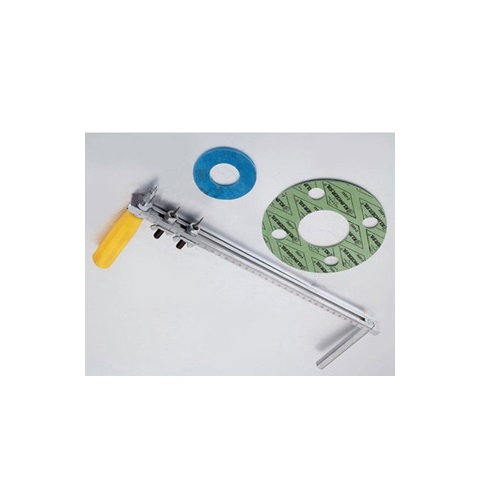

High Quality Circular Cutter
A specialized instrument to determine the GSM of the textiles (Woven, Non Woven or Knitted, Fabrics) Our
Round Cutter can be used for virtuallyany type of material including Film, Foam, Carpet Paper and Board.
The unit is recommended for Yield testing i.e. determination of weight per unit area. The sample cutter cuts
out rapidly and accurately circular specimens of 100 Sq. cm. which is exactly One Hundredth of a Square
Meter, the result in grams, multiplied by 100, gives grams per square meter.
Grams Per Square METER = Specimen Weight in Grams x 100
Specimen area: 100 CM2
Specimen diamter: 113 MM (Approx)
Type of cut standard
Blads heavy duty (German) for long life
Rubber Pad for this application for repetetive test without fail
The Cutter has been specially designed to make it portable due to its light weight. Only the fabric has to grip
between cutter base and Rubber pad cutter top to be rotated gently clockwise direction for accurate
cutting of fabric. The cut fabric can be weighed and multiplied by 100 to get GSM.
To maintain the efficiency of the Cutter:
a) The Blades should be turned or changed when they become damaged or blunt.
b) The Cutting Pad should also be changed, when it becomes worn out.
Note: - For best results, only approved blades and pads should be used
For determining the weight per area, a weighing scale having
the minimum sensitivity of 0.01 gm is required.
For this purpose, we have the following weighing scales:
1) Lab Analytical Balance : With 0.1 mg sensitivity
2) Digital Weighing Scale : With 0.01 gm sensitivity
Packing: standard export package
Shipping: by express
